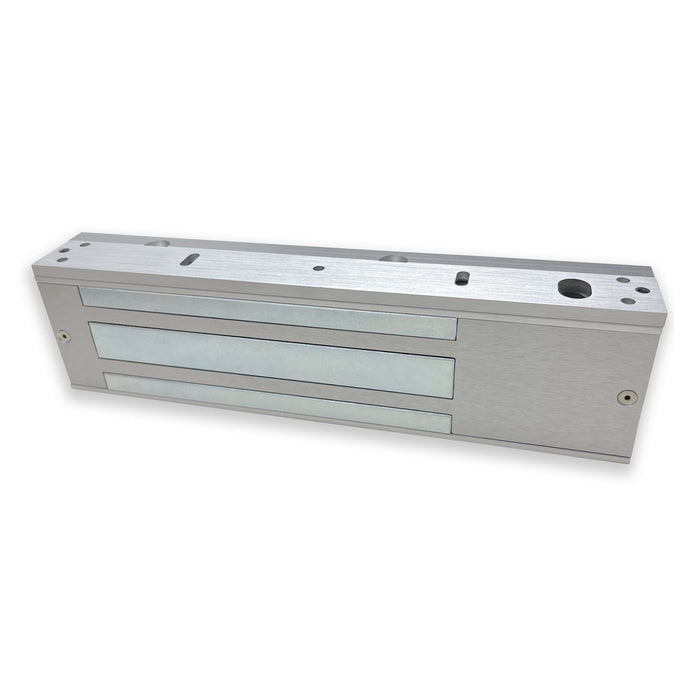

SDC’s patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade, and maintain.

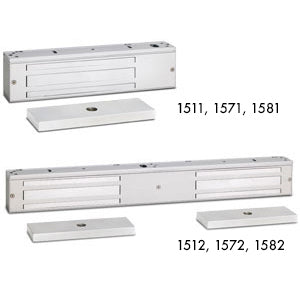

SDC 1500 series EMLocks® include a lifetime warranty and are available in 1650lbs (1510 Series), 1200lbs (1570 Series) and 650lbs (1580 Series) holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.

EMLocks® are UL Listed and ANSI Grade 1 compliant.

FEATURES

• Available in 1650lb, 1200lb, 650lb Holding Forces
• Autosensing 12/24 VDC Voltage Input
• Uniform Design & Installation
• Identical Housing, Template & Accessories
• Quick Mount Assembly
• Choice of 6 Anodized & Plated Finishes
• Modular Design & Modular Field Upgrade Kits
• Field Upgradeable Without Removing From Frame
• ANSI/BHMA Grade 1 Compliant
• BHMA Certified Holding Force
• UL, CSFM, MEA Listed
